Introduction:

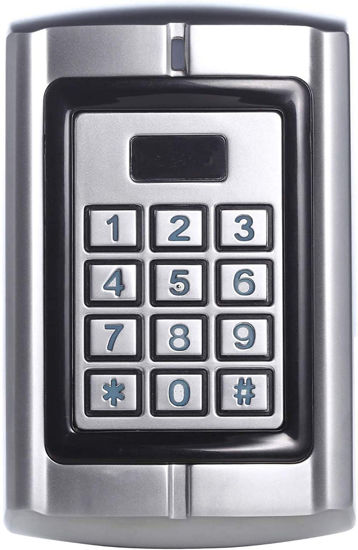

This series of products are using the new 32-bit microcontroller ARM core design with powerful functions. They are very stable and reliable. It’s a new generation of multi-function access controller, include Reader mode, Single-door mode, Double-doors mode, Interlock mode, Demo mode etc. All of them could be widely used in office buildings, homes, schools, condominium, apartments, flats, single houses, banks, prisons and other places.

Main Features:
Very Low Power Consumption (<35mA), long service life and stable performance
Application in High-Security Places: Warehouses,,commercial building, banks, villa, prisons, etc
Backlight keypad
With manager cards for adding or deleting card user easily
Wiegand 26-37 bit input & output,can be programmed
Protective Properties: IP65 fully-potted

Specifications:
Operating Voltage: AC/DC10-28V
User capacity: 20000
Card Type: 125KHz EM
PIN length: 4-8 digits
Wiegand Interface: Wiegand 26-37 bit
Working mode can be set: Controller mode, reader mode, interlock mode and demo mode
Specific reader mode: Customer can set output format
Access mode: Card/PIN/Card+PIN
User capacity: 20000
Support programming card, enter programming mode fast
Self-adaption infrared detection
Adjustable Door Relay Time: 1-99s
Standby Current: <35mA (Input DC12V)
Operating current: ≤100mA (Input DC12V)
Card Read Rang: <5cm
Operating Temperature: -40℉~140℉
Operating Humidity: 0-95%
Lock Output Load: 1A
Alarm Output Load: 3A
Antistatic: 15KV
Environment: Conforms to IP65
Wiring Length: 35.73-39.37in
Dimensions: L5.04xW3.22xH1.1(in)

Package:
Digital Keypad: 1PCS
User Manual: 1 PCS
Screw Driver: 1 PCS
Rubber Bungs: 4 PCS
Self Tapping Screws: 4 PCS
Diode: 1PCS
