Secure Client work mode: TCPS, HTTPS, MQTTS | SSL/TLS Encryption in TCP client, HTTP Client and MQTT modes | MQTT protocol for AWS/OneNET/ Alibaba IoT Platform | High Reliability and Stability:EFT-IEC61000-4-4 Level 3(±2KV),Built-in hardware watchdog,ESD-IEC61000-4-2 Level 4 | Redundant Power Supply

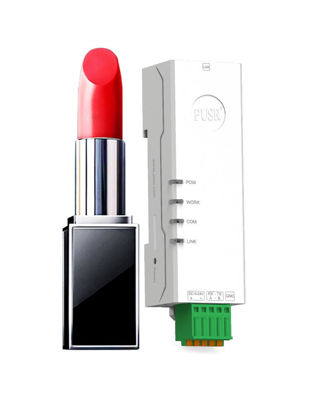

Lipstick” Size: Save Your Space | Rich Protocols: TCP/UDP/HTTP/DHCP/DNS | Modbus Gateway: Modbus TCP/RTU conversion, Modbus RTU to JSON | Easy Config: AT command, built-in webpage, config utility | Serial to Ethernet, Bidirectional Transparent Data Transmission

Serial to WiFi Converter USR-W610, which can Realize Bidirectional Transparent Transmission between RS232/RS485 and WiFi/Ethernet | Support [email protected] 802.11b/g/n Wireless Standards | Support TCP Server/TCP Client/UDP Server/UDP Client/HTTP Client Mode | Support AP, STA, AP+STA | Support RS232 and RS485 Serial Ports

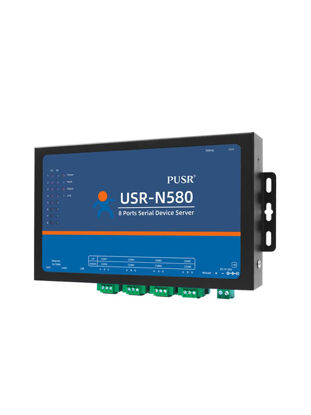

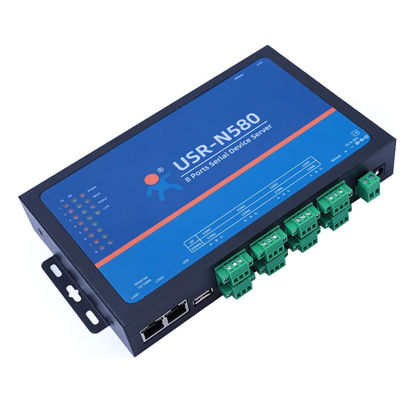

8 serial ports support RS485 communication, indicator lights (TX/RX) | Functions of Modbus gateway, Modbus RTU to Modbus TCP, Modbus polling | Support TCP Server, TCP Client, UDP Client, UDP Server, HTTPD Client working modes | Support virtual serial port and provide corresponding software USR-VCOM | Functions of Modbus gateway, Modbus RTU to Modbus TCP, Modbus polling

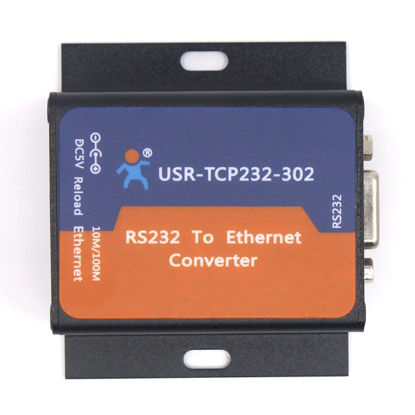

This is a serial RS232 to Ethernet server, used for data transparent transmission. USR-TCP232-302 is a low-cost serial device server,whose function is to realize bidirectional transparent transmission between RS232 and Ethernet. USR-TCP232-302 is internally integrated with TCP/IP protocol. User can apply it to device networking communication. | Support DHCP, automatically obtain an IP address and query IP address through serial setting protocol, Support DNS function, Set parameters through webpage, Upgrade firmware via network. | Auto-MDI/MDIX, RJ45 port with 10/100Mbps, Serial port baud rate from 600 bps to 230.4 Kbps, Check bit of None, Odd, Even, Mark and Space. | Work mode: TCP Server, TCP Client, UDP Client, UDP Server, HTTPD Client. Support virtual serial port and provide corresponding software USR-VCOM, Heartbeat package mechanism to ensure connection is reliable, put an end to dead link, User-defined registration package mechanism, check connection status and use as custom packet header. | Under TCP Server mode, Client number ranges from 1 to 16; default number is 4, The global unique MAC address bought from IEEE, user can define MAC address, Across the gateway, switches, routers, Can work in LAN, also can work in the Internet (external network).
