ITEM ID: AN_GPS_A601

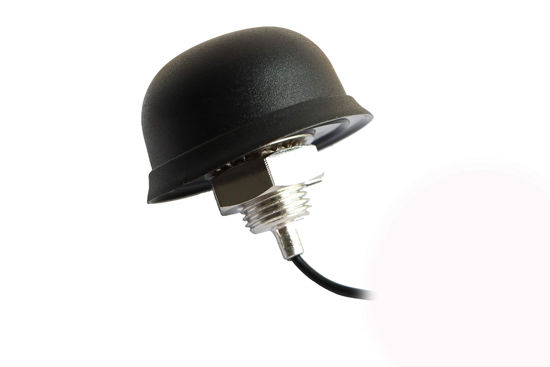

GPS Active Antenna semisphere Screw Mount
Antenna Center Frequency:1575.42±3MHz
Band Width:CF±5MHz
Polarization:RHCP
Gain:2dBic(Zenith)
V.S.W.R:<1.5
Impendance:50Ω
Axial Ratio:3dB(max)
Dimension:Φ68*34.8mm
LNA Gain:28±2dB
Noise Figure:<2.0dB
Supply Voltage:2.2~5V DC
Current Consumption:<20mA
V.S.W.R:<2.0
Mechanical Cable:4m
Connector:SMA male
Radome Material:ABS
Mounting Method:Screw
Environmental Operating Temperature:-40℃~+85℃
Relative Humidity:Up to 95%
Ingress Protection:IP67 (exclude cable outlet)
Vibration:10 to 55Hz with 1.5mm amplitude 2hours
Environmentally Friendly:ROHS Compliant
Ideal for GPS signal boosting of the GPS device and other CPE devices!
【
GPS CENTER FREQUENCY】: 1575.42±3MHz.Ideal for GPS signal boosting of the GPS device and other CPE devices!
【
PREMIUM QUALITY ANTENNA】: Our Omni-Directional Screw Mount Antenna is made from durable material - reinforced plastic, copper wire. It will be a professional, durable accessory!
【
MULTIPLE Applications】: IoT, industrial controls, Smart power meter, Smart water meter, GNSS system
【
IP67 WATERPROOF】: This antenna is completely waterproof (IP67) . Ideal for use outdoors, in vending machines, meter housings, equipment sheds, or other locations requiring a low-profile vandal resistant external antenna.
【
100% Satisfaction Guarantee】: We are committed to providing customers with the best product and services. If you have any question, please feel free to contact us and if the good is with any quality issue, we're happy to offer you a new one!
