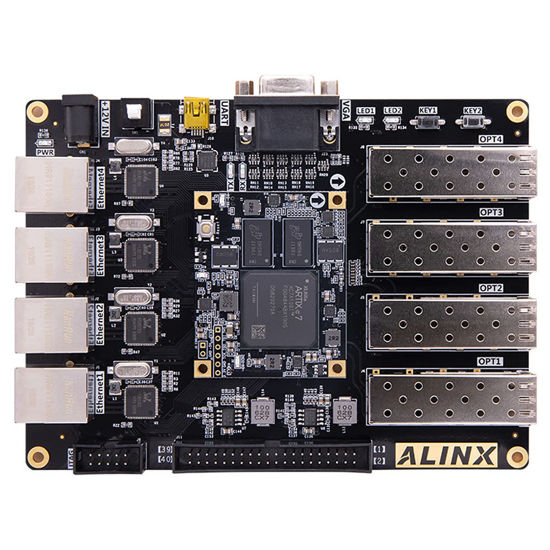

The Artix-7 FPGA 4SFP/ 4 Ethernet Evaluation Kit AX7101 features the leading system performance per watt Artix-7 family to get you quickly prototyping for your cost sensitive applications. This includes all the basic components of hardware, and pre-verified reference designs. Optimized for quickly prototyping cost sensitive applications using Artix-7 FPGAs, a high performance data transfer system using 4SFP and 4-port Ethernent Core Board: FPGA Xilinx Artix-7 XC7A100T-2FGG484I FPGA Clocking Fixed Oscillator with differential 200MHz output, used as the “system” clock for the FPGA Fixed Oscillator with differential 125MHz output, used as Differential SMA GTP reference clock input. Memory 8GB DDR3 SDRAM (2 pieces of 4GB) up to 800MHz / 1600Mbps, 32bit bus QSPI Flash: 128Mbit Display 3 LEDs: 1 Power indicator LED, 1 Configuration Indicator LED and 1 User LED 1 Reset Button. Power Reserved Mini USB interface. 4 pairs of 80-pin high-speed board to board connectors Expand 180 standard IO ports of 3.3V level, 15 standard IO ports of 1.5V level, and 4 pairs of GTP high speed RX/TX differential signals. Carrier Board: Communication & Networking 4 Ethernet ports, 10/100/1000 Mbps Ethernet (RGMII), Tri-Speed Ethernet PHY 4 x SFP/SFP+ Module Connectors USB-to-UART Bridge Connector Display 16-bit D-type VGA output interface Expansion Connectors 1-port 0.1 inch spacing standard 40-pin expansion headers Configuration JTAG header provided for use with ALINX Brand Xilinx download cables such as the Platform Cable USB II; Display 2 Buttons 2 User LEDs. Power: 12V DC Adapter
