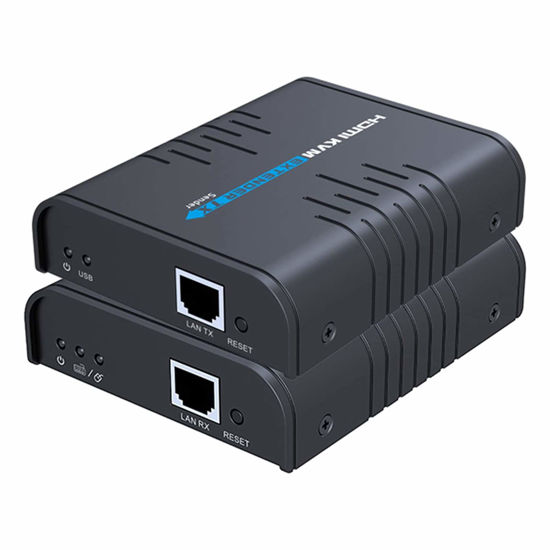

AGPtEK HDMI USB KVM extender switch
Looking to extend a HDMI signal over a significant distance
Want to access a computer system over a remote control
Searching for heavy duty accessories to create a crystal clear multimedia experience


Here are the cutting-edge features of our HDMI KVM switch:
- Transmits picture signals up to 1080p at 60HZ.
- Supports STP & UTP compliant CAT5/ 5e/ 6/ 7 cables following the standard of IEEE-568B
- Copy EDID function to match many kinds of display devices.
- Supports standard 802.3 Ethernet 10/ 100/ 1000Mbps.
- LED indicators for power and USB connection status.
- Transmits keyboard and mouse data via LAN.
- Aluminum alloy housing for port stability and durability.
- Built-in ESD protection system for safer transmission.

Installation Requirements
1. Source devices:PC or other devices with HDMI graphics card
2. Display devices: With HDMI input port,SDTV, HDTV, and monitor
3. Network cables: UTP/STP CAT5E/6/7 network cables (For better performance, we suggest to use CAT6/7 cable.)


NOTE:
1.Point to multi-point connection via switch is supported too,but under point to multi-point configuration, it is bly recommended to operate KVM function on one receiver only at the same time.
2.Transmission distance depends on type of network cable
CAT5:80m, CAT5E: 100m, CAT6/CAT7:120m
3.Can work on router over 450M with pc's, xbox,and please shut down the network management function of the router.
4.Can work with switch over Gigabit
5.Not work with wireless 2.4G mouse kit, only support wired or bluetooth mouse and keyboard with USB dongle.

Package Includes:
- 1 * AGPtEK HDMI KVM Extender (1* transmitter+ 1*receiver)
- 1 * CD (USB driver software)
- 2 * Power Adapters
- 1 * USB cable
- 1 * User Manual
