Product Include

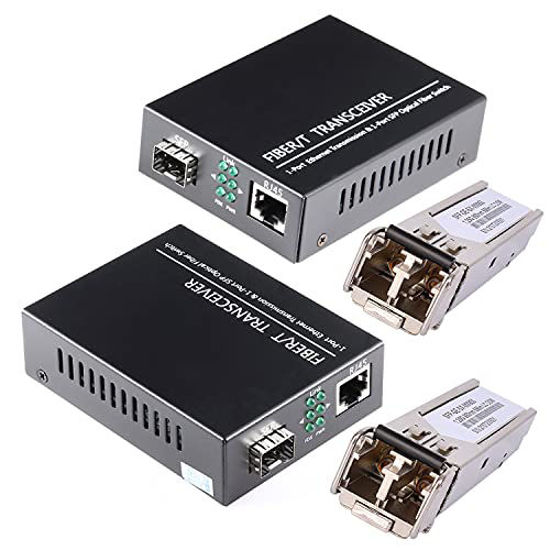

2x Gigabit Ethernet Fiber Media Converter
2xBiDi SFP slot LC Multi-Mode Dual Transceiver module up to 550m
2xDC Power Adapter Output voltage:5V DC/1A
1xProduct Manual,Multi-Language Quick Installation Guide

Feature Introduction
1.Optical Port Data Rate:1.25Gbps,10/100/1000Base-Tx to 1000Base-LX Dual LC Fiber Gigabit Media Converter
2.Interface: Dual LC Port+RJ45 Port, RJ45 Port Data Rate: 10/100/1000M auto-negotiation
3.Fiber Type:Multi-Mode Dual, Fiber Connector:Dual LC Fiber, Reach:550m,Included Power Supply Weight:0.35kg

Excellent Function
1.Super Heat Dissipation:Air-vent on both sides and metal enclosure provide better heat dissipation,low power consumption and long service life
2.Lightning protection.Strong anti-interference ability.High-speed and stability signal conversion
3.Standalone design with simple plug-and-play set-up.Compact size provide more flexible installation options.Dimensions:95x72x27mm(DxW xH)
4.Power Adapter Safety standards: UL/EN60950 GB4943, Power Dissipation ≤3 watts, External Power:AC100V~240V
5.High-quality Conversion Chip & Easy Installation,Operating temperature: 0°C to 60°C.Storage temperature:-20°C to 70°C.Humidity:5% to 90% RH

Wide Applications
1.Extend or bridge networks using fiber cable
2.Provide connectivity to users in an isolated area of a large complex or in a separate building
3.Ideal for secure connections required by government or corporations where EMI is not acceptable

LED Indicators
1.FP:Light on when fiber speed is 1000Mbps,else light off
2.TP:Light on when TP speed is 1000Mbps, else light off
3.Link/ACT: Left side is indicate for fiber port link/act and right side for TP, light flashing when data transmitting and receiving
4.FDX: Light on when TP full-duplex mode is active, light off when TP half-duplex mode is active
5. PWR: Light on when DC power on,else light off.
