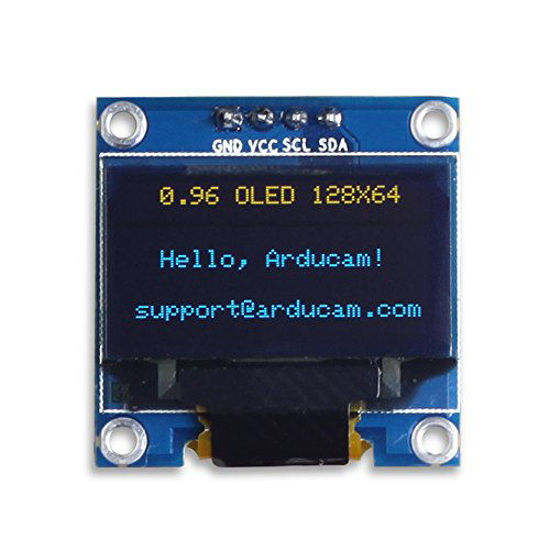

UCTRONICS 0.96 Inch OLED Module 12864 128x64 Yellow Blue SSD1306 Driver I2C Serial Self-Luminous Display Board for Arduino Raspberry Pi Pico

UCTRONICS 0.96 Inch OLED Module for showing graphical & textual information directly on your micro-controller projects. It supports many chips: Arduino UNO and Mega, Raspberry pi, 51 MCU, STIM 32, etc., the UNO shown in the picture is NOT INCLUDE | Resolution: 128 x 64, View angle: > 160°, Support voltage: 3.3V-5V DC, Power consumption: 0.04W during normal operation, full screen lit 0.08W | Embedded Driver IC: SSD1306. Communication: I2C/IIC Interface, only need two I / O ports | Needn't backlight, the display unit can self-luminous. It has Super High Contrast, bright and crisp dots, even tiny fonts quite readable | No embedded fonts inside the OLED controller, user can create the fonts through the font generation software. We offer technical support and software library as well as the guide book in the package
Manufacturer: UCTRONICS

All major credit & debit cards accepted securely:

₹1,322.71
Imported from USA to INDIA

Use 220V to 110V Adapter for Electronic appliances

Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Name: UCTRONICS 0.96 Inch 128X64 Yellow Blue OLED module This OLED display module is small, only 0.96? diagonal, it is made of 128x64 individual yellow and blue OLED pixels, each one is turn on or off by the controller chip.It works without backlight, that is, in a dark environment OLED display is higher compared to that of LCD display you will like the miniature for its crispness.The Driver chip of this OLED is SSD1306, which is compatible with IIC communication. So this module can be controlled by I2C.That is, except the VCC and GND, 2 wires would be needed when using 4-wires I2C mode.There is also a simple switch-cap charge pump that turns 5v into a low voltage drive for the OLEDs, making this module the easiest ways to get an OLED into your project.Features:OLED self-luminous, no backlightSize: 0.96?Driver IC: SSD1306 Voltage: 3.3V-5V DCViewing angle: > 160° High resolution: 128 x 64Working Temperature: -30°C~70°CDisplay: 2 rows of yellow, 6 rows of blueModule Size: 27mmx 27mm x 4mmScreen material: glass, need good protectionI2C Interface: GND: Ground VCC: 3.3V~5V SCL: I2C Serial Clock (UNO: A5; MEGA: 21) SDA: I2C Serial Data (UNO: A4; MEGA: 20)Applications:MP3, MP4, watchHead-mounted displaysMeters and other intelligent instrumentsDesign any pretty patterns for your beloved electronic devices! Package including: 1pcs UCTRONICS 0.96 Inch 128X64 Yellow Blue OLED Display Module
