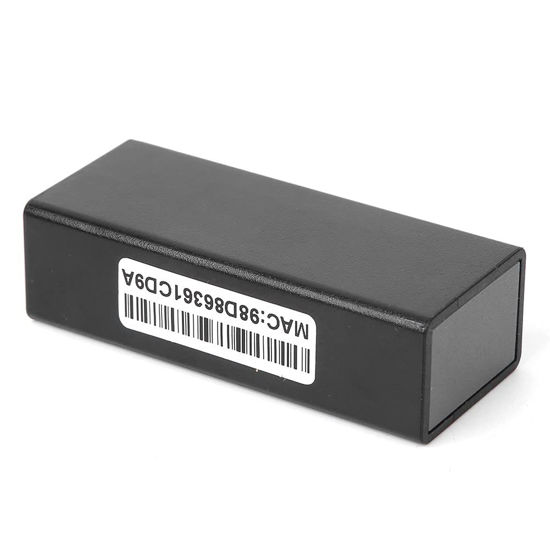

RS485 to WiFi Serial Server, RS485 to WiFi Serial Server Built in Antenna Wireless Communication Module RJ45 Interface 0.7 X 1 X 2.4, Device Servers

RS485 to WiFi serial server, support for AP and STA function; This RS485 to LAN converter is compatible with the , star tech. com serial device application software for iOS, and chrome browser (NETRSAPP). | The product can support multiple data encryption methods to ensure data confidentiality, and support registry package and heartbeat packet. | 1 x Serial server; 1 x Crystal head turn button + 4PIN terminal wire; 1 x Fixed bracket; 1 x Rail bracket; 2 x Screw. | Use this RS485 to ethernet IP converter to connect to, configure and remotely manage an RS485 serial device over an IP network. | SmartLink V7, X APP, Airkiss configuration, WEB page, CLI command, file import, Telnet configuration, IOTService software.
Manufacturer: FTVOGUE

All major credit & debit cards accepted securely:

₹2,403.60
Imported from USA to INDIA

Use 220V to 110V Adapter for Electronic appliances

Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Specification:
Item Type: RS485 to WIFI Serial Server
Model Name: HF7221
Function Explanation: Serial port to WiFi
Processing Unit: for Cortex-M4 SOC
Main Frequency: 160MHz
Operating System: Mbeb
FLASH Resources: 2MB
RAM: 384KB
Network Interface Parameters:
Wireless Standard: 802.11b / g / n
Antenna Form : Built-in antenna
WiFi Frequency Band: 2.412GHz-2.484GHz
Network Protocols: IP, TCP, UDP, DHCP, DNS, HTTPServer / Client, APP, BOOTP, AutolP, ICMP, Telnet, uPNP
WiFi Security (encryption Method): Encryption: AES 128Bit, 3DES, SHA-1, MD5, Base-64, RSA Certification: PSK, AES-CCMP
Wireless Transmit Power: 802.11b: +20 DBm (maximal) 802.11g: +18 DBm (maximal) 802.11n: +15 dBm (maximal)
Wireless Receiving Sensitivity: 802.11b: -89dBm ( At 11 Mbps, CCK) 802.11g: -81dBm ( At 54Mbps, OFDM) 802.11n: -71 dBm ( at HT20, MCS7)
Maximum Number of Connections: Maximal, 8STA
WiFi Mode: AP, AP + STA, STA
Serial Interface Parameters:
Number of Serial Ports: 1
Interface Standard: RS485
Baud Rate: 600-460800bps
Serial Port Protection: Yes
WEB Page: Standard web page or custom web page
IP Acquisition Method: DHCP or static IP, AutolP
Virtual Data Channel: Support
Firmware Upgrade: Webpage, for IOTService software, OTA
Registry Package Function: Support
Heartbeat Packet Function: Support
Custom Script Function: Support
Packet Filtering: Support
Automatic Serial Framing: Support
For ModbusRTU to for Modbus TCP: Support
NTP Function + Time Zone Setting: Support
Parameter Import and Export: Support
Reload Reset Interface: Yes
Environmental Parameters:
Working Temperature: -40-85
Storage Environment: -50-90, 5-95% RH (non-condensing)
Size: Approx. 18 x 26 x 61mm / 0.7 x 1 x 2.4in
