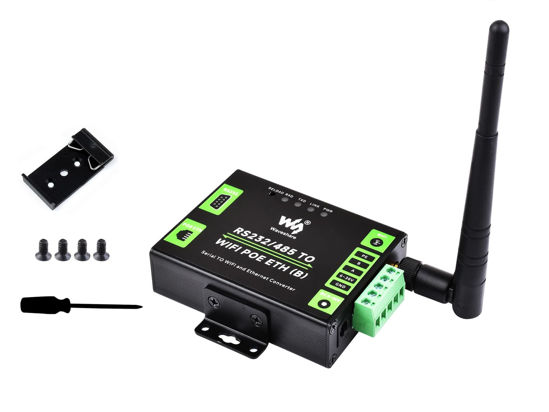

RS232/485 to WiFi POE Ethernet Serial Server Converter, Modbus/MQTT Gateway, Support Serial to WIFI, Serial to Ethernet, Ethernet to WIFI, Serial to HTTPD Client etc. DC 6~36V/PoE Power Supply

★ RS232/485 Serial to WiFi POE Ethernet Converter combines serial server, Modbus gateway, MQTT gateway, serial port to HTTPD Client, etc. multi functions in one, with RS232, RS485, WIFI and Ethernet interfaces, support serial port to WIFI, serial port to Ethernet, Ethernet to WIFI, etc. | ★ RS232/485 to WiFi POE Eth serial device server support PoE Ethernet port power supply, suitable for IEEE 802.3af PoE standard, support screw terminal and DC 5.5 power port for power supply, DC 6~36V wide voltage range input. Industrial aluminum alloy case, wall-mount and rail-mount support | ★Industrial grade serial server RS232/485 to WiFi and Ethernet support TCP server, TCP client, UDP server, UDP client transparent transmission mode | ★ Support AP mode, STA mode, and AP+STA mode multi wireless networking methods, support APLAN, APWAN, Router, and Bridge mode multi wired networking methods | ★ Featrues multi configuration methods, AT command mode, socket distribution protocol, hardware protection, customized registration packets, heartbeat packets

Manufacturer: waveshare

All major credit & debit cards accepted securely:

₹4,712.62

Qty:

Imported from USA to INDIA

Use 220V to 110V Adapter for Electronic appliances

Overview
Industrial serial server RS232/485 to WiFi and Ethernet, Modbus Gateway, MQTT Gateway, with PoE function. RS232/485 device data acquisitor/IoT gateway designed for industrial environment

Specifications
Product Description--Industrial rail-mount/wall-mount module with metal case, PoE function
Power supply--DC 6~36V / PoE port
Power supply method--DC 5.5 power port, screw terminal, or PoE port
Dimensions(L × W × H)--84.00×64.00×24.00mm
Communication
Ethernet--10 / 100M auto-negotiation RJ45 connector
WIFI--802.11b/g/n compliant
Serial port
--RS232 (ESD/EFT)
--RS485 (ESD/EFT/surge protection)
Wireless Specification
Frequency Band--2.412 ~ 2.484 GHz
Wireless network--Station / AP / AP+Station Mode
Security mechanism--WPA-PSK / WPA2-PSK
Encryption type--TKIP / AES
Transmitting power
--802.11b: +19dBm (Max.@11Mbps)
--802.11g: +18dBm (Max.@54Mbps)
--802.11n: +17dBm (Max.@HT20, MCS7); +17dBm (Max.@HT40, MCS7)
Receiving sensitivity
--802.11b: -89dBm (@11Mbps)
--802.11g: -81dBm (@54Mbps)
--802.11n: -73dBm (@HT20, MCS7); -71dBm (@HT40, MCS7)
Serial Specification
Baudrate--300 ~ 460800 bps
Parity bit--none, odd, even, mark, space
Data bit--5 ~ 9 bits
Software
Protocol--TCP / UDP / ARP / ICMP / DHCP / DNS / HTTP / MQTT
Configuration--host, web browser, serial AT command
Communication method--TCP/IP direct communication, VCOM
Operating mode--Transparent transmission, serial command, HTTPD Client, Modbus TCP to Modbus RTU
Environment Requirement
Operating temperature-- -40℃ ~ 85℃
Humidity range-- 5% ~ 95% relative humidity

Package Content
RS232/485 TO WIFI POE ETH (B) x1
2.4G WiFi antenna x1
Rail-mount buckle x1
Screwdriver x1
Screws pack x1

NOTE: Online Development Resources and Technical Support are provided, please feel free to contact us if you have any problem!
