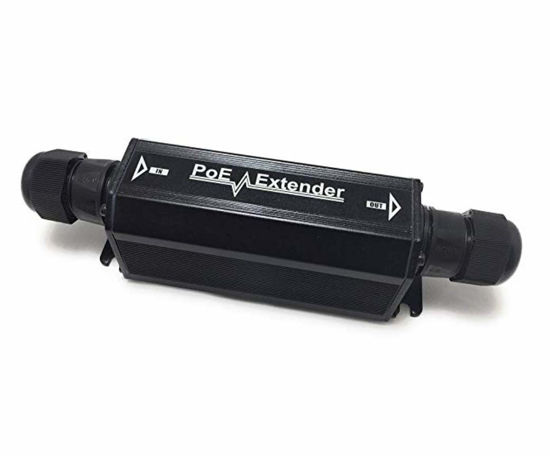

Ethernet and PoE connections both restrict cable distances to 100 meters between network ports. To overcome this distance limit, network installers can simply connect an PoE Extender in-line with the Cat-5e or Cat-6 calbe (Outdoor type)With PoE Extender, PDs (such as IP Security Cameras, wireless access points) can be installed at greater distances than 100 meters from one another. By connecting PoE Extender for every extra 100 meters of cable, both Ethernet and PoE can be extended to 200 meters, depending on PDs power required and power source.

No. of channels:1(PoE IN) into 1(PoE OUT )
Pass Through Data Rates:10/100/1000 Mbps half/full duplex
Power over Ethernet input:Pin Assignment and Polarity:Both 1/2 (·), 3/6 (+) and 7/8 (-), 4/5 (+)
Power over Ethernet Output:Pin Assignment and Polarity: 1/2 (+), 3/6 H
Connectors:Shielded RJ-45, EIA 568A and 568B
Network cables:Outdoor type Shielded category 5 (or higher)
Mounting:Wall of shelf
Environment:Indoor or Outdoor
Operating Ambient Temperature:-40 to 70"C Operating
Humidity:Maximum 90%, Non-condensing
Storage Temperature:-40 to 7o·c Storage
Humidity:Maximum 95%, Non-condensing
Regulatory Compliance:IEEE 802.3af (PoE), IEEE 802.3at (PoE+)

Tips:Please do not put the product directly in the water to work.
