Description
The PCIe BCM5751 NetXtreme Gigabit network card is a fully integrated 10/100/1000BASE-T Gigabit Ethernet media access control and physical layer transceiver solution for high-performance network applications. The BCM5751 combines a triple-speed,IEEE802.3 compliant media access control ,PCI Express bus interface, on-chip buffer memory, and integrated physical layer transceiver in a single device, it is provides a complete single-chip Gigabit Ethernet NIC or LOM solution.
Specification
High-performing, auto-negotiating 10/100/1000 connection
Easy, cost-effective migration to Gigabit Ethernet over existing CAT-5 cabling
Connectors: RJ-45
IEEE Standard/Network Topology: 10BASE-T, 100BASE-TX, 1000BASE-T
Bus Speed: 32/33, 32/66
Data Rate(s) Supported per Port: 10,100,1000 Mbps
IEEE Support: 802.2 and 802.3ab
Ethernet Controllers: BCM5751(PEG1)
Port Density: 1 Port
Standard: IEEE Std 802.3 IEEE Std 802.2 IEEE Std 802.3x IEEE 802.1p IEEE Std 802.3z
PCI-Express 1.1 form factor- 1 x 2.5Gbps line
Integrated 10/100/1000 BASE-T transceiver
10/100/1000base-T triple-speed MAC
High-speed RISC core with 24-KB cache
SMBus 2.0 controller
Wake-on-LAN power switching circuit
Half duplex at 10/100Mbp operation and full duplex operation at all supported speeds
TCP, IP, and UDP checksum
Microsoft large Send Offload
Large burst read
Interrupt coalescing
Industry-compliant alerting features
Alert Standard Format (ASF)2.0 support
Secure power-on and power-off
Fast hardware authentication (SHA-1, HMAC, MD5)
Ture hardware random number generation
Integrated TPM functionality
TCP/IP stack offloads significantly reduce utilization of CPU
TCP/IP stack offloads significantly increase throughput to enable faster downloads of large files
Drivers for NT/2000/XP/Win7 / Win8 / Win10 / Vista / Sever2008 / Sever 2012 / Linux2.2 and above
Package content

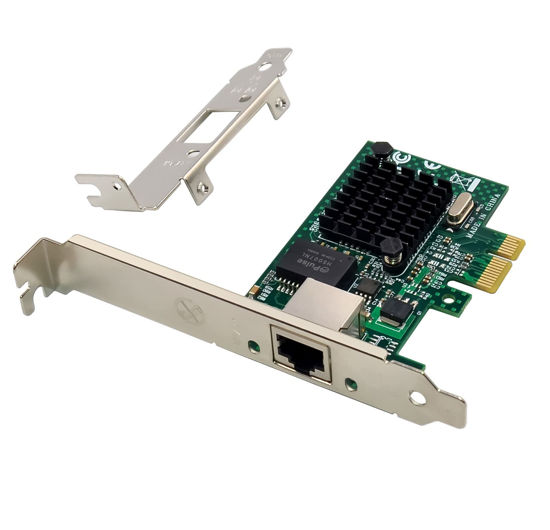

1 x PCIe BCM5751 NetXtreme Gigabit Network card
1 x User’s Manual
1 x CD
1 x Low profile bracket
