Stand-Along Access Control Keypad
1.Voltage: 12VDC, Current 120mA
2.User capacity: 1000 users
3.Proximity Reader Frequency: 125KHz
4.Compatible Cards: EM or EM compatible card
5.Reading Distance: 3-10cm
6.Support Card, password, Card + password, total three open door mode.
7.Full programming from the keypad, doesn't need to connect on the computer, can works alone.
8. Dimension: 117*75*22mm, Material: plastic

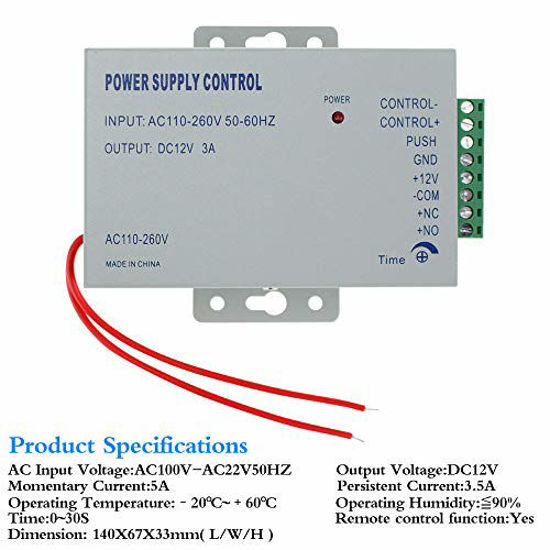

Power Supply
1.AC input: Standard AC100V-240V 50-60HZ 36W, DC output: DC12V/ 3 A
2.Set NC / NO outputs, can control various types of electric locks.
3.It will protect automatically and no voltage output when short circuit happening in the circumferential circuit.
4.Dimension:100*65*32mm, Material: metal

180KG Magnetic Lock
1.Working Voltage: DC12V, Working Current: Start state 1.2A Persistent state 120mA
2.NC Mode: Fail-safe type, unlocked when power off, locked when power on.
3. Lock core: The diameter 12.5MM, extending the length of 15MM
4.Suitable For: Wooden door, Glass door, Metal door, Fireproof door, etc.
5.With time delay: 0s, 3s, 6s. Waterproof: Yes, suitable for outdoor use.
7. Wires: red to "NC", black to "GND". Warm Note:yellow line and white line are useless, don't need to be connected.

Door Exit Button
1.Dimensions: 86*86*8mm
2.Material: fireproof ABS plastic
3.Power Input: DC 12V
4.Output Contact: NO / COM

RFID Keyfobs
1.Frequency: 125KHz, EM ID type
2.Chip: TK4100
3.Color: blue/white
4. Read Only
5.Quantity: 10pcs

Package Including
1 x Access Control Keypad
1 x Power Supply
1 x Electric Drop Bolt Lock
1 x Door Exit Button
5 x RFID Keyfobs
5 x RFID Cards
1 x User Manual
