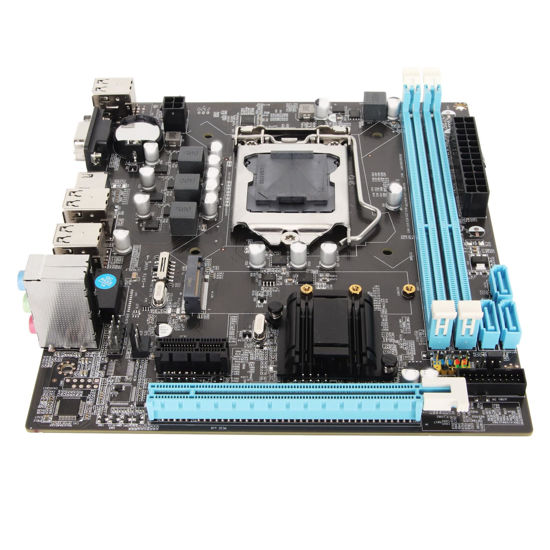

1. LGA 1155 CPU Slot: This desktop motherboard adopts LGA 1155 2nd Gen slot that supports i3/i5/i7, suitable for , and for Celeron series processors. (For example, i7 2600k, i5 2500s, i5 2400s, i3 2130, for G530/G630/G860, etc.)
2. Dual Channel DDR3: This Micro ATX motherboard supports 2 8GB DDR3 Non ECC memory and 1066/1333/1600MHz active frequency standard, with a maximum memory capacity of 16GB.
3. M.2 NVMe NGFF: This LGA 1151 motherboard with high speed M.2 hard disk interface, with jumper wire, support dual mode NVME NGFF, can freely choose high or low speed PCIe hard disk switch and SATA2.0 channel.
4. 3 Phase Power: This M ATX motherboard adopts 3 phase power supply, all solidstate capacitor design, and 24+4pin power socket to ensure the stable operation of the motherboard accessories.
5. HD VGA Ouput: This DDR3 motherboard supports VGA and HD Multimedia Interface output. Designed with PCIe X16 graphics card slot, 1 PCIeX1 slot, 6 USB 2.0, 3 SATA2.0, 1 M.2 hard disk interface.

Spec:
Item Type: Desktop Motherboard
Material: Printed Circuit Board
Battery: 240mAh CR2032 Battery (Inbuilt Battery Included)
CPU Slot Type: LGA 1155 I3/I5/I7/for /for Celeron Series CPU
Storage: 4 SATA 2.0 (3GB/s) Ports
LAN: 10/100Mbps LAN
Input and Output Interface: 6 x USB2.0, 1 x VGA Port, 1 x HD Multimedia Interface Port, 1 x RJ45 Port, 1 x 3 in 1 Audio Port (Line Input/Line Output/Microphone Input)
Onboard Interface: 1 x 24Pin ATX Power Connector, 1 x 4Pin ATX 12V Power Connector, 2 x USB Port(Support 4 x USB 2.0), 1 x F Audio Connector, 1 x F Panel Connector, 1 x F Speaker Connector, 1 x Fan Connector, 1 x LPC Debug Connector
Expansion Slot: 1 x PCI Express X16 Slot, 1 x PCI Express X1 Slot, 1 x M.2 NVMe/NGFF Slot
Integrated Audio: Onboard ALC 6 Channel HD Audio Codec, Provide Front Audio Interface,Front Stereo Mic
Structure: Micro ATX Structure (17 x 19cm / 6.7 x 7.5in)
