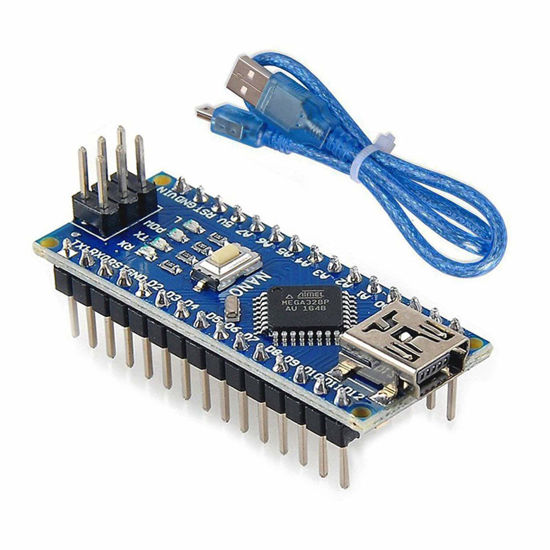

MakerFocus Mini Nano V3.0 ATmega328P Microcontroller Board w/USB Cable For Ar duino

Matters Need Attention: Before running the procedure, pls install the corresponding computer system driver. Drivers: directly from the chip manufacturer: WCH 340 product home page: http://www.wch.cn/product/CH340.html; http://www.wch.cn/download/CH341SER_LINUX_ZIP.html (linux should operate fine without the driver); http://www.wch.cn/download/CH341SER_MAC_ZIP.html(MAC); https://www.wch.cn/downloads/COMTransmit_ZIP.html(windows) | NOTE: If you want it to work on a Mac, please install the diver from this: https://drive.google.com/drive/folders/1phezjJtQW0vav34RoivsAzjF0ugmqjgn?usp=sharing; If you want it to work under Windows 10, You must turn off automatic updates before you install the driver, please install the diver from this: https://drive.google.com/drive/folders/1tl6sVGVduyH1JHfaYdMqeMGKdo-rg3im?usp=sharing | If you need an older driver, pls get it from GitHub-please read the link that follows immediate. http://sparks.gogo.co.nz/ch340.html; More details on how to use it please refer to: http://audiodiwhy.blogspot.com/2018/05/one-cheap-arduino-nano-clone-o-plus-one.html | Small Ar duino UNO Board: It is a smallest, complete and breadboard friendly board. It has everything that Ar duino/Genuino UNO has (electrically) with more analog input pins and onboard +5V AREF jumper; More Breadboard Space: Nano's got the breadboard-ability of the Boarduino and the Mini+USB with smaller footprint than either, so users have more breadboard space. It's got a pin layout that works well with the Mini or the Basic Stamp (TX, RX, ATN, GND on one top, power and ground on the other) | Specification: The Nano can be powered via the Mini-B USB connection, 7-12V unregulated external power supply (pin 30), or 5V regulated external power supply (pin 27). The power source is automatically selected to the highest voltage source. Usage: The Nano is 100% compatible with Ar duino, with the same chips ATmega328P and CH340 with the official version
Manufacturer: Makerfire

All major credit & debit cards accepted securely:

₹1,605.91
Imported from USA to INDIA

Use 220V to 110V Adapter for Electronic appliances

Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Features:
Nano V3.0 ATmega328P Microcontroller Board w/USB Cable For Ar duino
Fully Compatible to Ar duino Nano V3.0 ATmega328P-AU
ATmega328 Microcontroller
Bootloader installed, ready to upload sketches from Ar duino software
Microcontroller ATmega328P-AU
Operating Voltage :5V
Input Voltage (recommended) 7V-12V
Input Voltage (limits) 6V-20V
Digital I/O Pins 14 (of which 6 provide PWM output)
Analog Input Pins 8
DC Current per I/O Pin 40 mA
DC Current for 3.3V Pin 50 mA
Flash Memory 32 KB (ATmega328) of which 2 KB used by bootloader
SRAM 2 KB
EEPROM 1 KB
Clock Speed 16 MHz
Dimention:Approx. 45x17x19mm
Cable Length:245mm
Color:Blue(as the picture shows)
How to use:
Instructions:
1.Download IDE of ar duino.
Download link: http://arduino.cc/en/Main/Software (Copy to open)
2.Download USB Chip driver.
Download link:http://www.wch-ic.com/download/list.asp?id=126
3.Plug NANO development board, the driver will automatically install
4.Choose the NANO board in the die
5.Select the COM port, this can be in My Computer inquiries, just inside your UNO development board port.
6.The best choice, ar duino comes with the routine program, burning into it.
Youtu be video: https://www.youtube.com/results?search_query=Mini+Nano+V3.0+ATmega328P
Package:
1 * Nano V3.0 ATmega328P Ar duino Compatible Board
1 * Mini USB Cable
