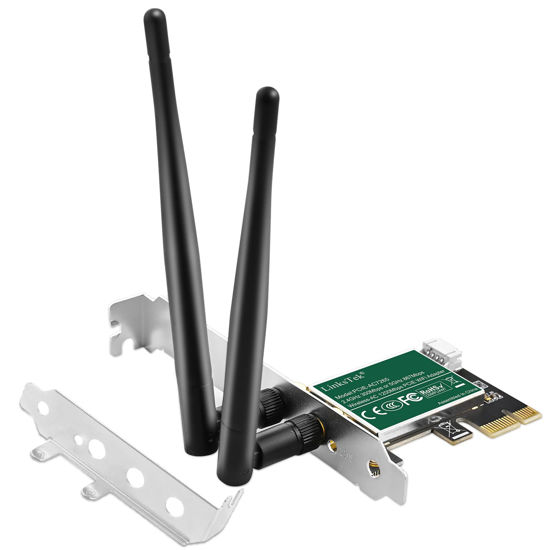

LinksTek PCIE-AC7265 is a Wireless-AC dual band 1200Mbps PCIE WiFi network card with WiFi audio adapter. It will allow desktop PCs pick up WiFi signal at 2.4GHz 300Mbps and 5GHz 867Mbps for internet surfing, online gaming, HD video streaming, and video calls etc. It is based on Intel Wireless-AC 7265D2W dual band 1200Mbps WiFi network adapter. It is built with 2X2 MU-MIMO technology, will ensure the fast and stable WiFi connection on users’ desktop PCs. It also provides the WiFi audio adapter for home or office use audio device transmission which includes WiFi mice, keyboard, speaker, WiFi earphones and headphones. It takes Wireless AP and WiFi Receiver working mode on desktop PCs, users can use it as a WiFi adapter and the soft AP share desktop PCs network to WiFi source.

Technical Specification:
Model: PCIE-AC265, Major Chipset: Intel Wireless-AC 7265.
WiFi Features: IEEE 802.11AC 2X2 MU-MIMO, Wi Fi Channel: 20/40/80Hz.
WiFi Spectral Frequency: 2.4 GHz/5 GHz. External Antenna Power: 2X 3dBi.
Compatible PCs: Full Height Bracket for Standard Size PCs, Low Profile Bracket for Slim PCs.
Peak speed: 300Mbps 2.4GHz/300Mbps 5GHz 867Mbps, Compatible Devices: works with IEEE802.11 A/ B/ G/ N/ AC /AX WiFi router or AP.

Compatible System:
1. Need to install WiFi Network driver and WiFi Audio Adapter driver on Windows 11,10, 8.1, 8,7 (32/64bit).
2.Supports Linux Kernel 4.2+.
3. NOT for MAC OS and Windows XP, Vista systems.
4.Users can download driver from Intel site or our site.

ATTENTION:
1.NOT for Windows XP, Vista and MAC OS systems.
2.Users must change to Low Profile Bracket when use this on slim PCs.
3.PCIE X1 Interface, users must make sure PCs have at least one empty PCIE slot before purchase.

Package List: 1X PCIE-AC7265 1X User Manual 1X Mount Screw 1X USB 2.0 Cable 1X Low Profile Bracket
