【1080P HD Video Balun】: Full-motion CCTV video at distance up to 350m-600m when used with any passive transceiver. Up to 300m for 960H/1080P AHD Cameras, up to 300m for 720P/1080P for HDTVI Cameras in DVR support. | 【Tool-Less Installation】:No need to strip the wires, this VIMVIP 1080P AHD/HD-CVI/TVI/CVBS Passive HD Video Balun Transmitter adopted newest “Prees Fit” screw free installation method, tool-less, installs in seconds, save your time, makes the installation work more convenient! | 【1000V Max Surge Protection】: This 1080P hd video balun has 1000V max surge protection and get certificate of the FCC, CE and ROHS. Built-in transient suppression protection, lasts for over 10000 hours/417 days. In addition, a specification which has detailed installation steps make the procession of installation simple and convenient was attached. | 【Split Jointed】: There are 6 small holes and bulgy points set on opposite sides of video balun enable you to combine them together and made a neat line so they are more manageable if more than one video balun is used. | 【Widely Application】: Compatible with HD-CVI, HD-TVI, HD-AHD, CVBS, NTSC, PAL, and SECAM video formats. 60 Db cross talk and noise immunity. Push-terminal channel passive HD transceiver, male BNC allows connection directly to TVI/CVI/AHD or camera system，gold plated BNC better transmission quality long distance HD transmitter. No power required!

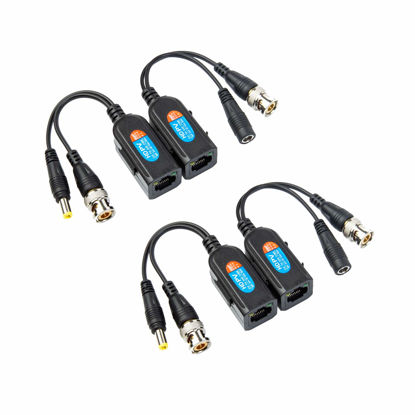

Size:(16.3CM) and (17CM) Colour:(black) Package Quantity:(2 PAIRS) Material:plastic+metal Features: Balun HD cat5 female to BNC male video baluns+DC 5.5 x 2.1mm female /male jack adapter cable | Video and Power Transmission via UTP CAT5 cable.A Maximum distance length：(CVI/AHD/TVI)(720P 960P:250/820ft(MAX))(1080P 3MP 4MP 5MP 8MP:200 m/656ft(MAX) ) ,B Maximum distance length：(CVBS/Analog)(960H:300m/1,000ft ) | Super Extensive Applications: Support all video devices, such as camera, monitor, DVR card and recorder etc.Compatible with all digital CVI, TVI and AHD Cameras. | Note: Power voltage drop calculations: For 12V DC 1Amp, Cable distance should not exceed 90 feet/27 meters.For longer distances, please use 14V DC, 16V DC,18V DC,20-48V DC .Note:RJ45 video balun is not waterproof. For indoor use only.Make sure the rj45 for camera side and DVR side are the same standardsWrongfully mixing the colors may result in burning the camera and devices. | Power & Video Balun: Gold Plated BNC is provided with better transmission quality and long distance HD transmitter.Note: This product is without the indicator light

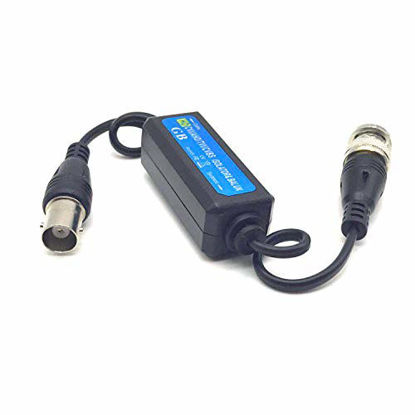

BNC male to BNC female with mini cable 25cm on both sides | Passive, no power required | Prevents video-signal distortion caused by video ground loops, Eliminates picture tearing, cross talk and rolling | Prevents power cables laid by others interfering with the CCTV system

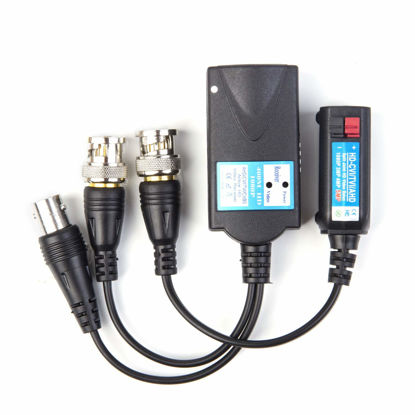

【Video & Power Receiver】: Difference from other kinds of CCTV video balun transceiver, this 1 pair video balun is composed of 1x1080P 400M CCTV BNC HD CVI/TVI/AHD/CVBS HD Active Video Balun& Power Receiver and 1x 5MP HD-CVI/TVI/AHD Video Balun Transmitter. Smallest size in Chinese Mainland, BNC male connector, directly connect with DVR, video splitter, Matrix or Monitor. | 【400M-800M Distance】 : Up to 400M, work with Passive video balun, for HD CVI/TVI/AHD Cameras. Up to 800M, work with Passive video balun, for CVBS Cameras. In order to achieve high quality video signal transmission, we recommend you use Standard CAT5e/6 or better UTP cable. | 【Dial Switch】: Transmit PAL/NTSC HD CVI/TVI/AHD/CVBS Video signal via UTP, DC 12V power supply. Use Dial Switch to control contrast, use Knob switch to adjust brightness, use press Terminal block (screwless), easy to install. | 【Video Format】: These video balun support NTSC, PAL HD CVI/TVI/AHD/CVBS video signal. LED indicate Power (Blue Light), Signal (Green Light). Lightning proof, common-mode anti interference function. High cost performance ratio! | 【What You Get】: 1x 1080P 400M CCTV BNC HD CVI/TVI/AHD/CVBS HD Active Video Balun& Power Receiver and 1x 5MP HD-CVI/TVI/AHD Video Balun Transmitter. +Installation Specification+1 Year Friendly of Warranty Service.
