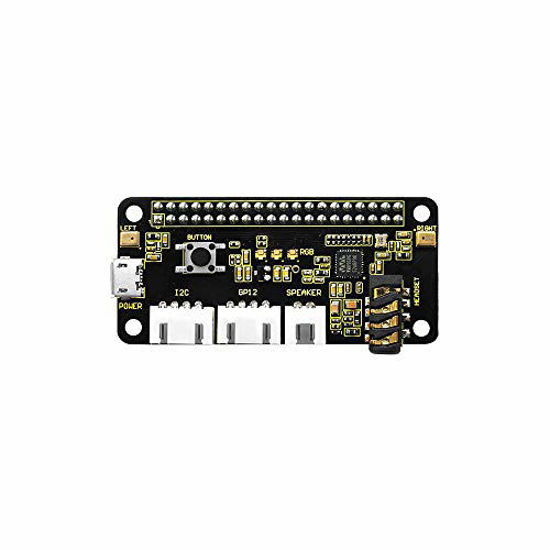

KEYESTUDIO ReSpeaker 2-Mic Pi HAT V1.0 for Raspberry Pi Zero and Zero W, Raspberry Pi B+, Raspberry Pi 2B and 3B

This is keyestudio ReSpeaker 2-Mic Pi HAT V1.0 shield designed for AI and voice applications. It is a low power stereo Codec based on the WM8960. | There are two microphones on the shield for sound collection, three APA102 RGB LEDs, one user button and two Grove connectors for application extension. | In addition, a 3.5mm audio jack or XH2.54-2PIN speaker output can be used for audio output. | With this shield, you can build a more powerful and flexible voice product that integrates Amazon Amazona voice services, Google Assistant, and more. | Technical Support: Connection Diagram, Sample Code, Using Method and Resources are provided in our wiki page. Technical support is available via email or message.
Manufacturer: KEYESTUDIO

All major credit & debit cards accepted securely:

₹1,605.91
Imported from USA to INDIA

Use 220V to 110V Adapter for Electronic appliances

Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Features: 1)Support the Raspberry Pi Zero and Zero W, Raspberry Pi B+, Raspberry Pi 2B and 3B 2)Two microphones (Mic L and Mic R) 3)Two Grove connectors 4)One User-defined button 5)3.5mm audio interface 6)XH2.54-2PIN audio output connectorInterface Explanations: 1)Button: default connected to GPIO17 2)Mic L and Mic R: microphone (labeled LEFT and RIGHT) 3)RGB LED: three APA102 RGB LEDs, connected to the SPI interface of Raspberry Pi. 4)WM8960: Low Power Stereo Codec 5)Raspberry Pi 40 pin header: support the Raspberry Pi Zero, Raspberry Pi 1 B+, Raspberry Pi 2B and 3B. 6)POWER: Micro USB port that powers the ReSpeaker 2-Mic Pi HAT. Power the circuit board to supply enough current when use the speaker. 7)I2C: Grove I2C port, connected to I2C-1 8)GPIO12: Grove digital port, connected to GPIO12 and GPIO13 9)XH2.54-2PIN SPEAKER OUT: connecting speakers 10)3.5mm audio jack: connecting headphones or speakers with 3.5mm audio plugPackage List: KEYESTUDIO ReSpeaker 2-Mic Pi HAT V1.0 * 1
