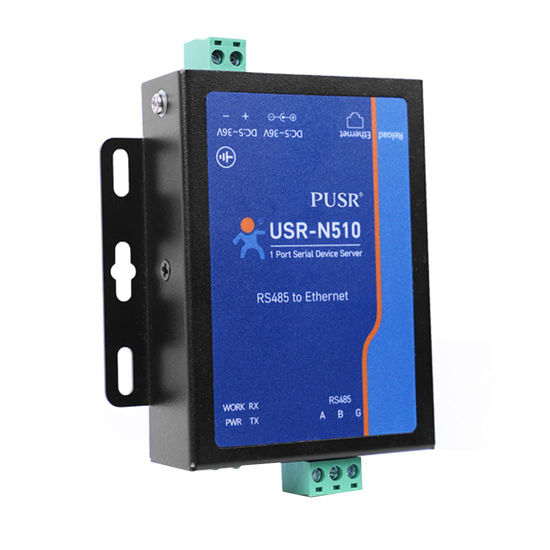

JMT USR-N510 New Version (H7-4) 1 Port RS485 to Ethernet Converter DC 5-36V Serial Device Server Up to 400Mhz Support Modbus RTU to Modbus TCP Virtual COM with 12V Power Adapter

* Main Function * -- This RS485 to ethernet adapter can realize bi-directional transparent transmission between RS485 and network.Support Modbus Gateway,Modbus RTU to Modbus TCP, Modbus Polling.Support MQTT/SSL/Modbus RTU to JSON/SNMP/Telnet/Edge Computing | * High Speed * -- Master chip adopts ST crotex-M7 core, the main frequency is up to 400Mhz, fast processing speed,high stable and reliable performance. | * Support Configuration * -- This RS485 to ethernet adapter can be configured via Web Server page, AT commands, and Windows Utility.The user also can update its firmware via web page or setup software. | * Four Work Modes * -- In TCP Server,the data will be transparently transmitted to all successfully connected clients through the serial device server. In TCP Client,can initiates a TCP connection to the specified IP address.In UDP mode,can monitor the port meanwhile and forwards all received data to the serial device.In HTTPD Client ,data can be submitted to a specified server by GET or POST method. | * Application Cases * -- The billing information and power usage can be viewed remotely through the platform to facilitate operation and maintenance.can effectively solve the problem that workers need to monitor equipment on-site, save labor costs, and increase production efficiency and safety factors.

Manufacturer: JMT

All major credit & debit cards accepted securely:

₹7,486.90

Qty:

Imported from USA to INDIA

Use 220V to 110V Adapter for Electronic appliances

********** Features **********
(1) 1-port 485 Ethernet device servers
(2) Power supply accepts wide voltage input range DC 5-36V
(3) Modbus Gateway: Modbus RTU to Modbus TCP, Modbus Polling
(4) Support flow control XON/XOFF
(5) Configuration via Web Server page, AT commands, and Windows Utility
(6) MQTT/SSL/Modbus RTU to JSON/SNMP/Telnet/Edge Computing

********** System Information **********
Processor: ST Cortex-M7
Basic Frequency: 400MHz
Flash: 128K+4M byte

********** Ethernet **********
Port Number: 1
Interface Standard: 8 pin RJ45
Rate: 10/100 Mbps, MDI/MDIX, auto switch between cross and direct connection
Protection: 2KV electromagnetism isolation, shell insulation blocking
Network Protocol IP,TCP,UDP,DHCP,DNS,HTTP,ARP,ICMP,Web socket,Httpd client
Receive Buffer: Max 16k bytes buffer

********** Serial **********
Port Number: 1
Interface Standard: RS-485: 2 wire (A+,B-) Half-Duplex
Data Bits: 7,8
Stop Bit: 1,2
Check Bit: Even,Odd
Baud Rate: 600bps ~ 921600Mbps
Flow Contro: XON/XOFF
Buffer: Send and receive 4k bytes respectively
Protection: RS-485 (anti-static 2KV,lightning protection|)
RS-485 Pull-up and Pull-Down Resisto: 2.2 K?

********** Software **********
Virtual Serial (USR-VCOM): Windows 2000 or higher(32 bit/64 bit)
Configuration: Built-in webpage, computer set-up software, serial command

********** Basic Parameter **********
Size: 88 x 81 x 24 mm
Operating Temp:-40 ~ 85°C (industry)
Storage Temp: -40 ~ 85°C, 5 ~ 95% RH (no condensation)
Input Voltage: DC 5 ~ 36V
Working Current: 53mA @ 12V
Power: <1W

********** More **********
Certificate: CE,FCC,ROHS
Warranty: 2 years
