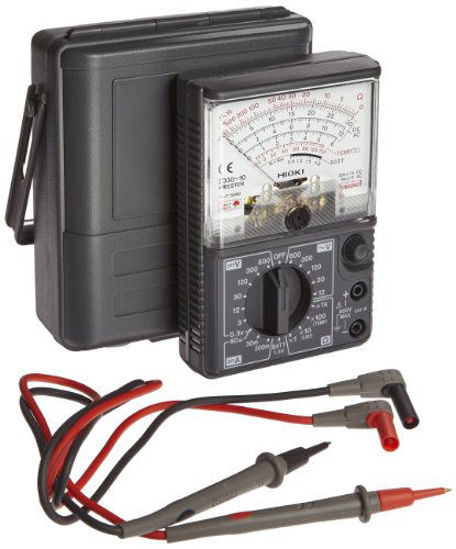

The Hioki 3030-10 HiTester analog multimeter is an average-sensing, manual-ranging meter for measuring voltage, resistance, and current in electrical testing applications. The meter comes with a set of detachable test leads. This average-sensing, or average-responding, meter provides accurate readings when measuring linear loads, such as standard induction motors and incandescent lights, where the current or voltage has an undistorted waveform. It is a manual-ranging meter that requires the operator to choose the appropriate operating range for the property being measured. The battery tester feature determines the amount of charge remaining in 1.5V batteries. A thermistor probe (sold separately) can be connected to the meter to take temperature measurements. The meter can also test the functionality of LED lights. A 0.5-amp/250V fuse is installed to help protect the operator from electric shock due to transient voltage. It meets International Electrotechnical Commission (IEC) safety standard 61010 and is certified for Category III installations up to 600V, which covers items used with enclosed building circuit installations (such as service panel parts, branch circuits, and fixed installations that are connected directly to a building's AC power supply). The meter can survive falls of up to 1 meter to a hardwood or concrete floor. It comes with a carrying case for transport and storage.SpecificationsMaximum AC voltage input600 volts (V)Maximum DC voltage input600VMaximum resistance detected3 kilohmsMaximum current detected300 milliampTemperature measurement range-20 to 150 degree Celsius/-20 to 300 degrees FahrenheitPower supply1.5V AA batteries (two, installed)Weight280 g/9.9 oz.Standards metInternational Electrotechnical Commission (IEC) safety standard 61010:2001; European Commission (CE) marked; European Union EMC (EN) EN61326Dimensions141 x 95 × 39 mm/5.55 x 3.74 x 1.54 inches (H x W x D)H is height, the vertical distance from the lowest to highest point; W is width, the horizontal distance from left to right; D is depth, the horizontal distance from front to back.Multitesters (also called multimeters) are electrical test meters that measure multiple properties of an electrical circuit, such as current, voltage, resistance, capacitance, and continuity. Available in handheld or benchtop models, multitesters diagnose electrical problems in electrical equipment, wiring, and power supplies. A variety of probes, clamps, and leads can be used to connect the meter to a circuit or device. Multitesters display information either in analog or digital form. Factors that influence meter choice include the electrical properties to be measured, the anticipated range of results, and the desired level of protection against transient voltages. Safety ratings are based on the International Electrotechnical Commission's (IEC) standards for low-voltage test equipment. IEC 61010 delineates four overvoltage installation categories. In general, a meter with a category IV rating will provide more protection against transient voltages than a meter with a lower category rating.Hioki manufactures memory recorders, automatic test equipment, and electronic testing and measurement instruments. The company, founded in 1935, is headquartered in Japan and has a U.S. office in Cranbury, NJ.What's in the Box?Hioki 3030-10 HiTester analog multimeter9060 Test lead set(2) 1.5V batteries (installed)Carrying caseInstructions
