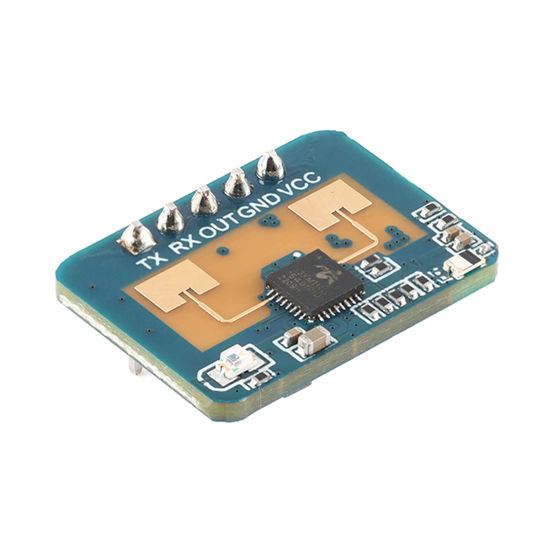

EC Buying LD2410C Sensor Module HLK-LD2410 Human Presence Radar Sensor Module LD2410 Millimeter Wave Radar Sensor Module Non Contact 24GHz ISM Band Serial Port IO Level Output

LD2410C is a high sensitivity 24GHz human presence state sensing module. Its working principle is to use FMCW FM continuous wave to detect human targets in the set space | The module combines radar signal processing and accurate human body sensing algorithm to realize high sensitivity human body presence state sensing, and can calculate the target distance and other auxiliary information | In addition to being sensitive to the moving human body, this product can be sensitive to the static, inching, and sitting and lying human body that cannot be recognized by the traditional scheme | The product can output the detection results in real time and quickly, with the maximum sensing distance of 5 meters and the distance resolution of 0.75 m | Support GPIO and UART output, plug and play, flexible application to different intelligent scenarios and terminal products
Manufacturer: EC Buying

All major credit & debit cards accepted securely:

₹1,794.71
Imported from USA to INDIA

Use 220V to 110V Adapter for Electronic appliances

Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Product characteristics
Frequency: 24GHz~24.25GHz
Modulation mode: FMCW
Detection distance: 0.75m~6m adjustable
Detection angle: ± 60°
Power supply: 5V
Current: 79mA
Output serial port level: 3.3V
Sweep bandwidth: 250MHz
Range resolution 0.75m
Ambient temperature: - 40℃~+85℃
Data format: serial port ASCII output/high and low level 3.3V&0V
Module size: 16mmx22mm, with 5 pin holes reserved for hardware (factory default pin)
The hole diameter of pin hole is 0.9mm, and the distance between bow and foot is 2.54mm

Interface type:
RX, serial port receiving
TX, serial transmission
OUT, inductive output high level
GND, power ground
VCC, power supply input (5V voltage)
