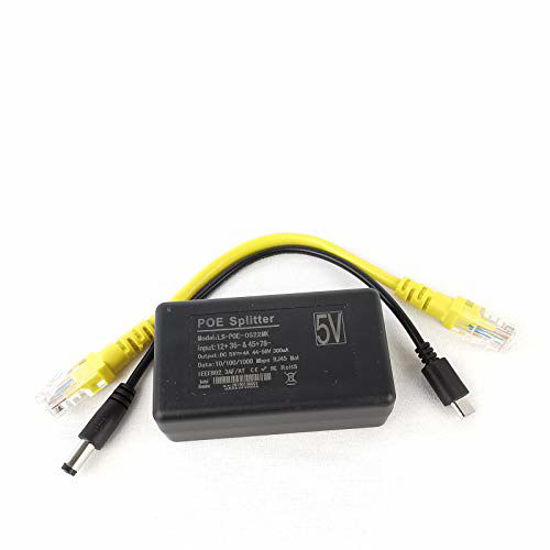

Note: 1?The POE splitter must be connected to the POE switch, POE midspan or 48V~52V POE injector for proper operation. 2?Output power Max.12Watt (DC5V2.5A) when used with the IEEE802.3af standard PoE switch(or 802.3af PoE injector). 3?Output power Max.20Watt (DC5V4A) when used with the IEEE802.3at standard PoE switch (or 802.3at PoE injector) . 4?Output power Max.20Watt (DC5V4A) when used with the DSLRKIT Non-standard 48V~52V Passive PoE switches (or 48V~52V Passive PoE injector) . RJ45 female INPUT Port: Support the IEEE 802.3af/at the Power over Ethernet PoE Switch Support 48V Unsolicited Power Over Ethernet PoE Switch Support 48V Unsolicited Power Over Ethernet PoE Adapter Specification: Compliant with IEEE802.3af output 5V2.4A 12.5Watt Compliant with IEEE802.3at output 5V4A 20Watt Isolation: 2.5kV Power Input: DC44~57V Power Output: DC5V 4A Data&Power INPUT Port: from RJ45 female (Compliant with IEEE802.3af/at PoE) Data Output Port: RJ45 Male Power Output Port: USB Type-C Power Plug Data Transfer Rate: 10/100/1000 Mbps Data Pin: RJ45 pin 12345678 Devices will be detected before poe input Power Pin:support both 1/2(+/-),3/6(-/+) or 4/5(+),7/8(-) Body size: 80 x 27x 22 mm DC cable length?165mm RJ45 Modular Plug cable length?155mm Weight : 55g Operation Temperatue:-20? ~ 45? Storage Temperature:-30? ~ 70? Item Included: 10/100/1000Mbps 5V4A Active PoE Splitter(USB type-C Power Plug) x1
