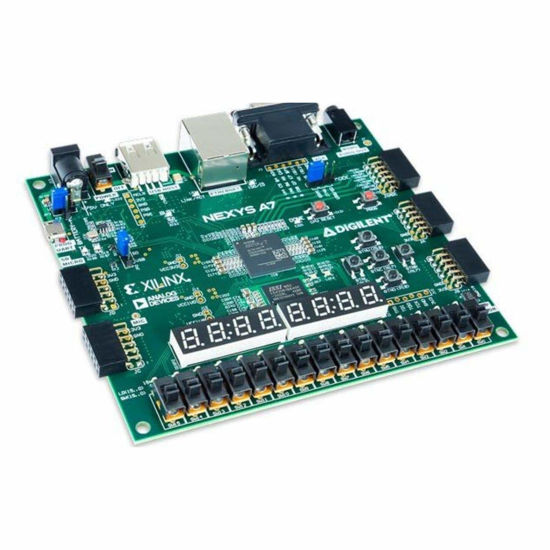

The Nexys A7 is the new name for our popular Nexys 4 DDR board, now available in two FPGA densities! Featuring the same Artix-7 field programmable gate array (FPGA) from Xilinx, the Nexys A7 is a ready-to-use digital circuit development platform designed to bring additional industry applications into the classroom environment. The Artix-7 FPGA is optimized for high-performance logic, and offers more capacity, higher performance, and more resources than earlier designs. With its large, high-capacity FPGA and collection of USB, Ethernet, and other ports, the Nexys A7 can host designs ranging from introductory combinational circuits to powerful embedded processors. Several built-in peripherals, including an accelerometer, a temperature sensor, MEMs digital microphone, speaker amplifier, and plenty of I/O devices allow the Nexys A7 to be used for a wide range of designs without needing any other components.The Nexys A7-100T is compatible with Xilinx's Vivado Design Suite as well as the ISE toolset, which includes ChipScope and EDK. Xilinx ISE has been discontinued in favor of Vivado Design Suite. Xilinx offers free WebPACK versions of these toolsets, so designs can be implemented at no additional cost.The Nexys A7 is not supported by the Digilent Adept Utility.Features:

• Xilinx Artix-7 FPGA XC7A100T-1CSG324C
• 15,850 logic slices, each with four 6-input LUTs and 8 flip-flops
• 4,860 Kbits of fast block RAM
• 6 clock management tiles, each with phase-locked loop (PLL)
• 240 DSP slices
• Internal clock speeds exceeding 450MHz
• On-chip analog-to-digital converter (XADC)
• 128 MiB DDR2 Serial Flash
• Digilent USB-JTAG port for FPGA programming and communication
• microSD card connector
• Ships with rugged plastic case and USB cable
• USB-UART Bridge
• 10/100 Ethernet PHY
• PWM audio output
• 3-axis accelerometer
• 16 user switches & more!
