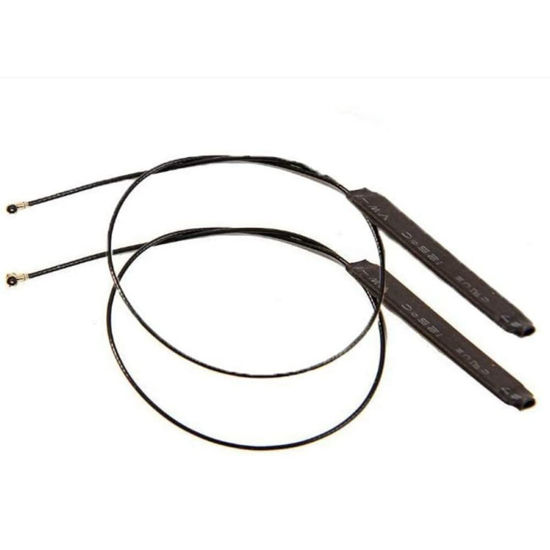

Bluetooth MHF4 IPEX 2.4Ghz 5Ghz 5.8G WLAN Network Adapter PC WiFi Antenna for Intel 7260 8260 8265 9265 9260 9560 AX200 AX Killer M.2 IPEX4 Wi-Fi Wireless WLAN Card Banana Pi 4 M2 Zero Hachintosh

For 3G N5321 4G Sierra Wireless AirPrime EM7355 EM7455 EM7340 EM7345 GOBI5000 for HUAWEI ME906E ME906V ME906J ME906C ME936 MU736 NGFF M2M WWA N Card for Intel 7260 7265 3160 3165 8260 8265 17265 18265 9260 9560 ax200 ax201 NGFF M.2 Wifi Card Act( Don't work on 7265D2W 8260D2W ) for Broadcom BCM943228ZH BCM94352Z NGFF Card Act for Broadcom BCM94360CSAX BCM94360CS2 BCM94360CS2AX BCM94360HMB WIFI WLAN CARD for 3G LTE (antenna) GPRS GSM CDMA built-in laptop antenna cable wifi wire antena replacement | Support: 4G / 3G / 2.4G / 5G Compatible with: IPEX MHF4 Antenna Slot SMT type coaxial receptacle and Mating plug cable connector Small form factor and low profile 1.2mm Max. Mating Height Applicable cable: 0.81mm RF coaxial cable Application Technology: IEEE802.11 ax/ac/a/b/g/n, WiMax, Zigbee, Bluetooth Wireless Length: one:42cm(16.53inches) another:47cm(18.50inches).ngff cable ipex mhf antenna wire wifi internal pigtail antenna | Ultra small size connector for Note Book PC, computer GPS module cable, GSM module cablem WLAN 2.4GHz module cable, WLAN 5.8Ghz module cable, Digital apploance, Dual band ghz mini antennas for long wwan wifi booster gaming omnidirectional wifi antenna | NOTE: Only Use for M.2 (NGFF) Interface, Do Not Use for MINI pcie Interface (please look the Picture), 2.4/5G Dual Frequency Internal High Gain WiFi Antenna mhf4 Jack pigtail cable extension directional extender cable antenna replacement kit for wireless module & bluetooth wifi cards | Frequency Range: DC up to 6GHz (VSWR: 1.3 max. at 0.1~3GHz; VSWR: 1.4 max. at 3~6GHz) ( option: 1.2Ghz 2.4Ghz 3Ghz 6Ghz 8Ghz 12Ghz 18G... ) Rated Voltage: AC 60v Contact Resistance: 20m ohm max.(Signal) and 10m ohm max.(Ground) Withstand Voltage: AC 200V Insulation Resistance: 500M ohm Min./DC 100V density | Also work for intel 9260ngw ax200ngw 7260hmw and the Jetson Nano Module M.2 wifi card with MHF4 connector.killer ax1650 broadcom asus wifi modem internal cards alfa eplacement antenna cables for remoto control wifi hotspot wifi security camera antenna with mhf4 connectors
Manufacturer: TREADALT-TEC

All major credit & debit cards accepted securely:

₹1,417.11
Imported from USA to INDIA

Use 220V to 110V Adapter for Electronic appliances

Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

Note! Don't work on MINI PCIE module slot. (please look the Picture).
Compatible with: IPEX MHF4 Antenna Slot:
Work with Intel 7260 7265 3160 8260 17265 18265 9260 9560 ax200 ax201 NGFF/M.2 Card Act ( Don't work on 7265D2W 8260D2W ) Broadcom BCM943228ZH BCM94352Z NGFF Card Act Broadcom BCM94360CSAX.BCM94360CS2.BCM94360CS2AX.BCM94360HMB WIFI WLAN CARD.

Impedance : 50 ohm
Salt spray test : >= 48 hours, enhanced corrosion resistance
Mounting : machined brass construction crimp & soldered mount
Connection Protection: Black Heat Melt Shrink Tube Versafit or equivalent
Operating frequency :0-6 GHZ ( option: 1.2Ghz 2.4Ghz 3Ghz 6Ghz 8Ghz 12Ghz 18G... )
Technical characteristics : temp. range : -65 to +165 ( PE cable range : -55 to +85 )

Attach an Antenna
It's recommended you leave the antenna connected to the module at all times. The precision interface can easily be damaged by improper disconnection or re-connection.
Follow these steps if you must reconnect an antenna:
1. Inspect the antenna receptacles on the module; don't use if deformed or damaged.
2. If possible, acquire or 3D print an installation tool. If using a tool; follow the instructions found with the tool.
3. For manual installation, align the connectors so they are perpendicular. Attempting to engage connectors at an angle damages both connectors.
4. Press the antenna wire connector straight down onto the module receptacle. You should hear an audible click and mechanical snap when a proper connection is made.


Note
MHF4 connector is a tough nut to crack, especially for first-time users.
It has to be dead-center and 90 degrees straight down to be pushed in with a tiny bit of force. Easy does it.
Yes, it's a bit scary (just like first time riding a bicycle.)
Do not ever think to try using a slightly tilted angle to wiggle it in. That will probably hurt the connector alignment itself.
