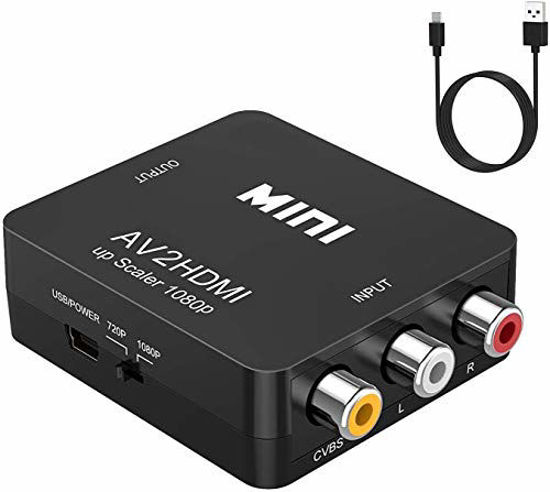

Introduction: it converts RCA (AV, composite, CVBS) signals into HDMI signals so you can watch your video on a modern tv with HDMI ports. The analog to digital conversion in this module employs 10 bits maximal 162Msps sampling, black/white level expansion, color transition improvement, dynamic range expansion, Blue stretch, auto-detect and auto-convert the composite signal to 1080p(60hz) output. Making video come alive, delivering the sharpest, most realistic HD visuals available.

specifications:

1. Input ports: 1Xrca (Yellow, white, red), USB power

2. Output ports: 1xhdmi(standard)

3. Ntsc/PAL compatible

4. Composite input: PAL, NTSC3.58, NTSC4.43, SECAM, PAL/M, PAL/n

5. Hdmi output: 1080p/60Hz, 720p/60hz

6. Dimensions (mm): 66(d)x55(w)x20(h)

7. Weight (g): 40g

8. Power: USB port

features:

no need to install drivers, portable, flexible, plug and play.

support PAL, NTSC3.58, NTSC4.43, SECAM, PAL/M, PAL/N standard TV formats input.

output The audio synchronization with video.

can be displayed on monitor/ TV with 1920x1080@60hz high bandwidth capability

note: may experience less than three second lag.Will not convert audio only., important: for converter to function properly all cables must be connected and in use (Yellow: video, white: left audio, and red: right audio).supported audio Format: 2 channel analog audio, does not support 3D.

package Content:

1Xav to HDMI converter

1Xusb cable

1xUser manual> Note: video signal transfer only, can't improve the video quality
