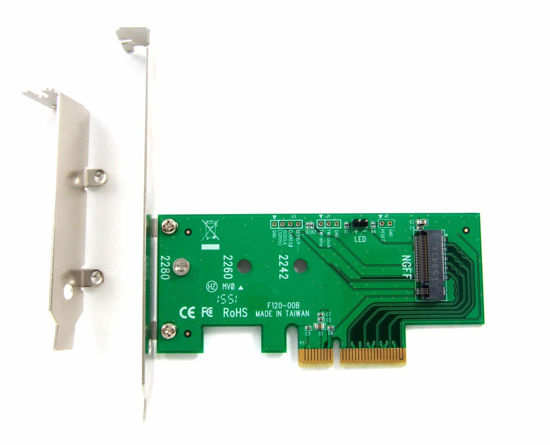

The Ableconn PEXM2-SSD allow you to install an M.2 NGFF PCIe (AHCI or NVMe) SSD through a Low Profile PCIe x4 card to your PC System.

Features
* Connector:
- 1x M-key (type 2280-D5-M) M.2 socket for M.2 NGFF PCIe based SSD
* Software:
- No driver installation required.
- Windows 10/8, Windows Server 2012 R2, Linux series, Fedora, SUSE, Ubuntu, Red Hat native drivers support both PCIe-NVMe and PCIe-AHCI

Note: Mac Pro 2009, 2010 and 2012 models support PCIe-AHCI SSD only
* System Requirement:
- An empty PCIe 4.0 or PCIe 3.0 x4, x8, or x16 slot.

* Convert M.2 NGFF PCIe based SSD to work in main board PCIe x4 bus slot
* PCI Express 4.0 x4 Lane Host adapter Low Profile Form Factor board with both Regular size and Low Profile bracket included
* Support PCIe L1 Power Management Substates with CLKREQ.
* Compliant with PCI Express 4.0. Supports PCIe 4.0 and PCIe 3.0 motherboards
* Movable M.2 NGFF stand-off and multiple plated-holes supports type 2280, 2260 and 2242 M.2. Supports M.2 NGFF 80mm, 60mm, 42mm SSDs.
* Supports dual-sided M.2 SSD module with 1.5mm component height on the top and bottom side
* Pin header on board for drive LED connection
* Supports industrial operating temperature range: -40 - 85 ºC
* M.2 PCIe SSD gets power from motherboard PCIe bus slot 3.3V
* Fully RoHS compliant
* Made in Taiwan
Note: SATA Based M.2 SSD module can NOT work with this PCIe Based Adapter

Compatibility (Incomplete List)
* Samsung XP941, SM951 (AHCI or NVMe), 950 Pro Series SSDs
* Kingston HyperX Predator M.2
* Plextor M6e Series M.2 SSD

Package Contents
* Ableconn M.2 PCIe SSD to PCIe x4 Host Adapter Card
* 1x low profile PCIe bracket
* 1x mounting screw
