5 Piece 0.96 inch OLED module 12864 128x64 driver i2c iic serial self-luminous display board compatible with Arduino Raspberry PI

Features:
This OLED display module is small, only 0.96inch diagonal, it is made of 128x64 individual yellow and blue OLED pixels, each one is turn on or off by the controller chip.
It works without backlight, that is, in a dark environment OLED display is higher compared to that of LCD display you will like the miniature for its crispness.
The driver chip of this OLED, which is compatible with IIC communication. So this module can be controlled by I2C. That is, except the VCC and GND, 2 wires would be needed when using 4-wires I2C mode.
There is also a simple switch-cap charge pump that turns 5v into a low voltage drive for the OLEDs, making this module the easiest ways to get an OLED into your project.
OLED self-luminous, no backlight.

Applications:
MP3, MP4, watch, head-mounted displays, meters and other intelligent instruments. Design any pretty patterns for your beloved electronic devices.

Specification:
Size: 0.96 inch
Voltage: 3.3V-5V DC
Viewing angle: more than 160 degree
High resolution: 128 x 64
Working Temperature: -30 to 70 degree Centigrade
Display: 2 rows of yellow, 6 rows of blue
Module size: 27 x 27 x 4 mm
Screen material: glass, need good protection
I2C Interface:
GND: ground
VCC: 3.3V-5V
SCL: I2C serial clock (A5. MEGA: 21)
SDA: I2C serial data (A4. MEGA: 20)

Package includes:

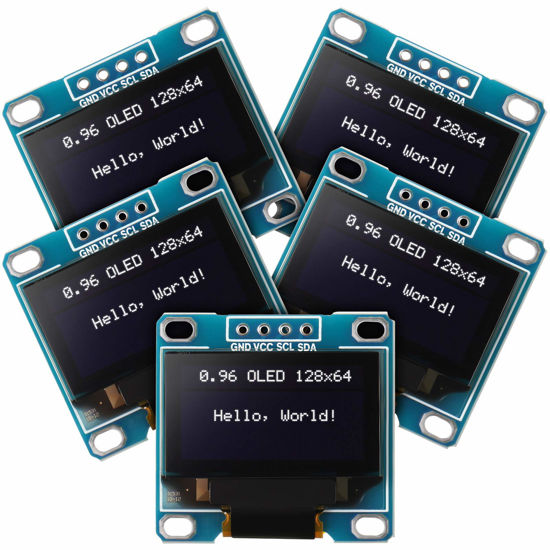

5 X 0.96 Inch 128x64 yellow blue oled display module

Tip:
The blue and yellow areas are fixed and cannot be reset.
The yellow area is the upper row, and the lower area is blue, as shown in the picture.
