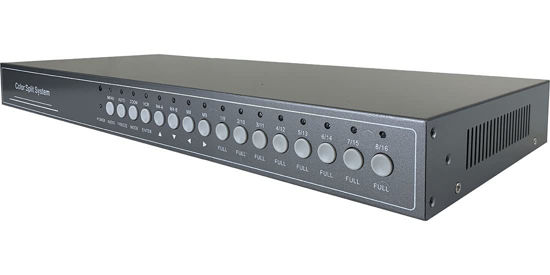

Advanced 16-channel video multiplexer mixer for real-time multi-channel display on one screen. Full duplex operation for displaying and recording all of its video channels simultaneously. | Ideal for security monitoring or video preview application where multiple images are needed. Split-screen modes and PIP locations can be manually configured with ease by the front panel, IR remote or RS232 console. | 16 individual input buttons for fast switching between each video input. 16 video pass-through ports. 3 video outputs including 2 composite BNC/RCA video outputs and 1 VGA out at 1024x768 for live viewing and recording. | 4 audio inputs with 1 audio output. 16 screen mode options presented in 16/9/8/4/3-grid, quad screen, PIP, picture-by-picture style or single channel full screen. Easy selection for main channel, sub/PIP channel via front push buttons or IR remote for best suited visual presentation. | Supports RS232 long range control and camera control by RS485 connection. Supports time/date stamp and auto sequential switching function with adjustable dwelling time. | Supports programmable motion detection area and sensitivity levels for each camera/input. Flexible external alarm input/output configurations. | Supports automatic video loss detection, motion detection, external alarm detection with buzzer sound. Built-in alarm buzzer can be manually enabled for motion detection, video signal loss or external alarm setup. | Supports image freeze function, enabling video frames to be paused or captured for extended period of time. High performance zoom function with selectable zoom area for detailed display. | Border line On/Off function for use in split screen modes. Individual color adjustment provided for each video input channel for brightness, contrast, hue, saturation and sharpness control. | Easy on-screen OSD setup menu for configuration and operation. 1U rack-mount ready. Easy integration with other A/V system and video broadcast applications.
